Between 1964 and 1966, EMD built a total of 360 six-axle 2,500hp SD35 locomotives. An additional 35 steam generator-equipped SDP35 locomotives were also built during this period. These were all part of EMD’s “35-Series” which also featured the four-axle, 2,500hp GP35 locomotive. All locomotives included the standard EMD 567-series prime mover. A stock model weighed 360,000 pounds, but many roads chose to add weight to increase the locomotive’s tractive effort. From the mid-1960s through the 1980s, the SD-35 could be found in road service on both large and mid-sized roads across the US. Today the number of active units has dwindled to a select few, including those operated by regional railroad Montana Rail Link.

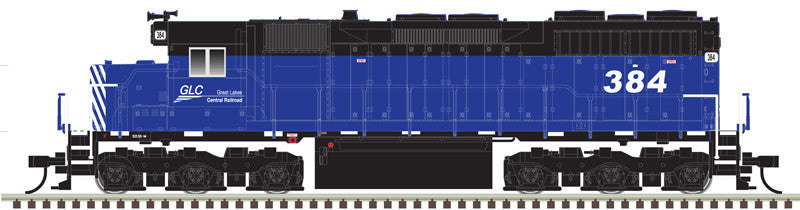

Atlas’ model incorporates many of the subtle details that differentiated the various SD-35 production phases. This includes the detail of the engine air intake, dust bin, radiator screens, radiator fans, fuel tanks and battery boxes. Other options include a low vs. high nose, and a low nose with our without a standard-style headlight.
Features:
- Realistic die-cast underframe
- Five-pole skewed armature motor with dual flywheels for optimum performance at all speeds
- Golden-white LEDs
- Directional lighting
- Factory-equipped with AccuMate knuckle couplers
- Detailed cab interior with crew
- Separately-installed scale windshield wipers, metal grab irons and fine scale handrails
- Marker lights with separate lenses
- Scale fans and grille detail
- Flat dust bin or raised dust bin as appropriate by railroad
- Snowplow (included but not installed)
Atlas Master Series Silver Additional Features**:
- NMRA 21-pin plug for DCC (Decoder-ready)**
DCC Operation Features:**
- Supports all DCC-programming modes • Flexible mapping of function keys F0 to F28**
- A total of six DCC function outputs are available
- Follows all NMRA DCC standards and recommended practices.
Analog (DC) Operation Features:**
The LokSound Select Dual-Mode decoder allows your Atlas Gold Series locomotive to be used on DC as well as on DCC layouts.**
Please note that the Atlas Quantum Engineer will NOT operate an Atlas Gold Series locomotive equipped with a LokSound Select decoder on an analog (DC) layout. However, the sound and lighting functions of the LokSound Select decoder in the locomotive can be controlled by an easy-to-use basic DCC system
Also note that on a DC-powered layout, a DCC and sound equipped locomotive CANNOT be consisted with another locomotive that does not also have both DCC and sound. (This statement does NOT apply to DCC-equipped locomotives operating on a DCC layout.)**
ESU Sound Functionality Features:
- Over 20 sound effects are available, including engine start-up and shutdown, prime mover sounds through all eight notches, bell, air horn, air compressor, dynamic brakes and more.
- There are 16 user-selectable horns, 2 user-selectable bells, and 2 user-selectable synchronized brake squeals.
- Manual and Automatic Notching modes with the ability to change modes ”on the fly” are provided for true realism.
