KadeeSKU: KADE1906R
Kadee #1906R 1 Scale Type E Straight Centerset Shank Couplers with Standard Body Mount Gearboxes - Rust
Kadee #1906R 1 Scale Type E Straight Centerset Shank Couplers with Standard Body Mount Gearboxes - Rust
$10.95
/
Kadee #1906R 1 Scale Type E Straight Centerset Shank Couplers with Standard Body Mount Gearboxes - Rust
$10.95
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

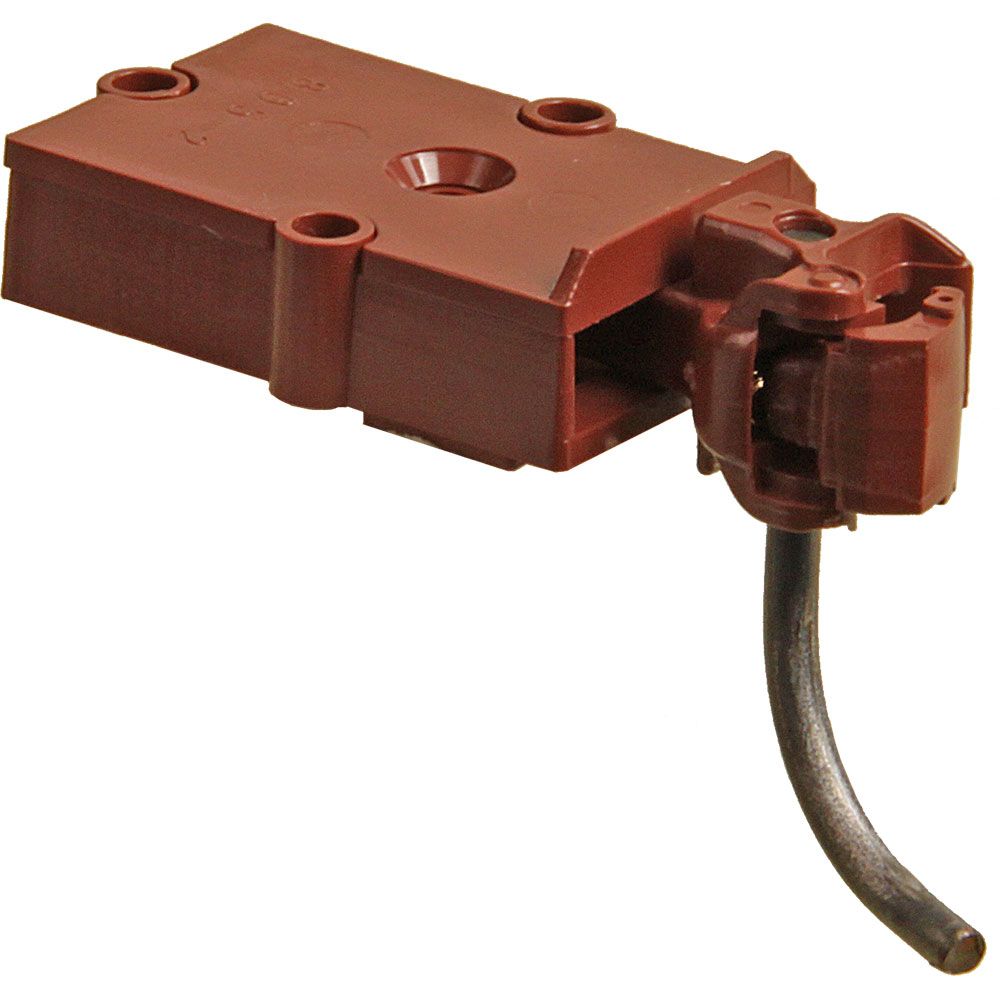

#1906R Type E Straight Centerset Shank Couplers with Body Mount Gearboxes - Rust - 1 Scale
This industry leading coupler features New Generation AAR Type "E" Head Straight Centerset Shank Couplers, and #879 1 Scale centering spring and comes complete with #1920R Body Mount Gearboxes and lids.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
UPC: 765484019061
Made in the U.S.A.
1-Scale
- AAR Type "E" Coupler
- Simple Drop in Design
- Hidden Knuckle Spring
- Trouble Free Operation
- Compatible with All Kadee® 1-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
- Patent number 7,810,660 B1
Package Includes:
- (2) Each #1900R Type New Generation AAR Type "E" - Straight Centerset Shank
- (2) Each #1920R Body Mount Gearbox & lids
- (3) Each #879 Centering Springs
- (4) Each #4 x 3/4" Screws
#1900R Plastic Coupler Features:
| Material | - Plastic |
| Shank Length | - (9/16") (Back of the Coupler Head to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #879 #1 Scale Centering Springs |
| Head | - New Generation AAR Type "E" |
| Works In Place of | - #1906, #1906R, & #820 1 Scale Straight Centerset Couplers |
| Works With | - #1920, #1920R Draft Gearboxes |

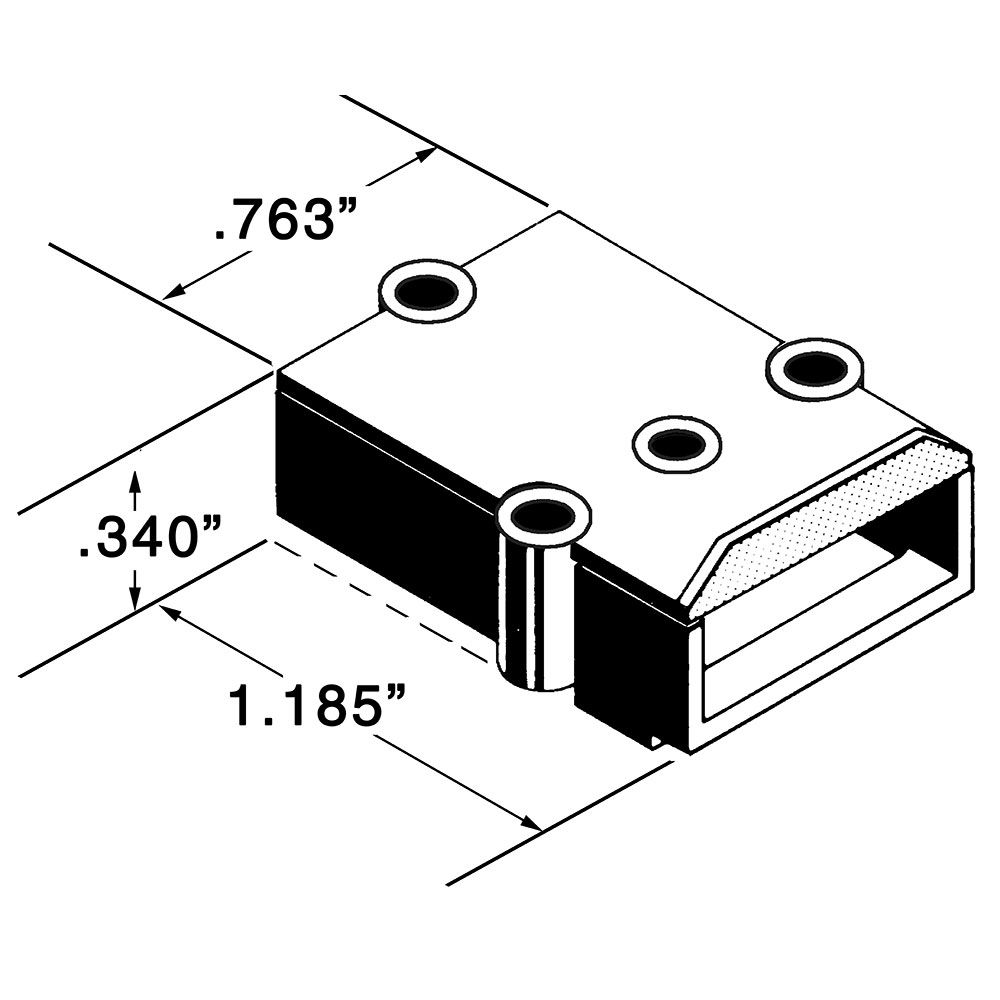

#1920 Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic |
| Dimensions | - 1 1/4"L x 7/8"W x 5/16"H |
| Works With | - #820, #1906, #1906R, & #920 Couplers |

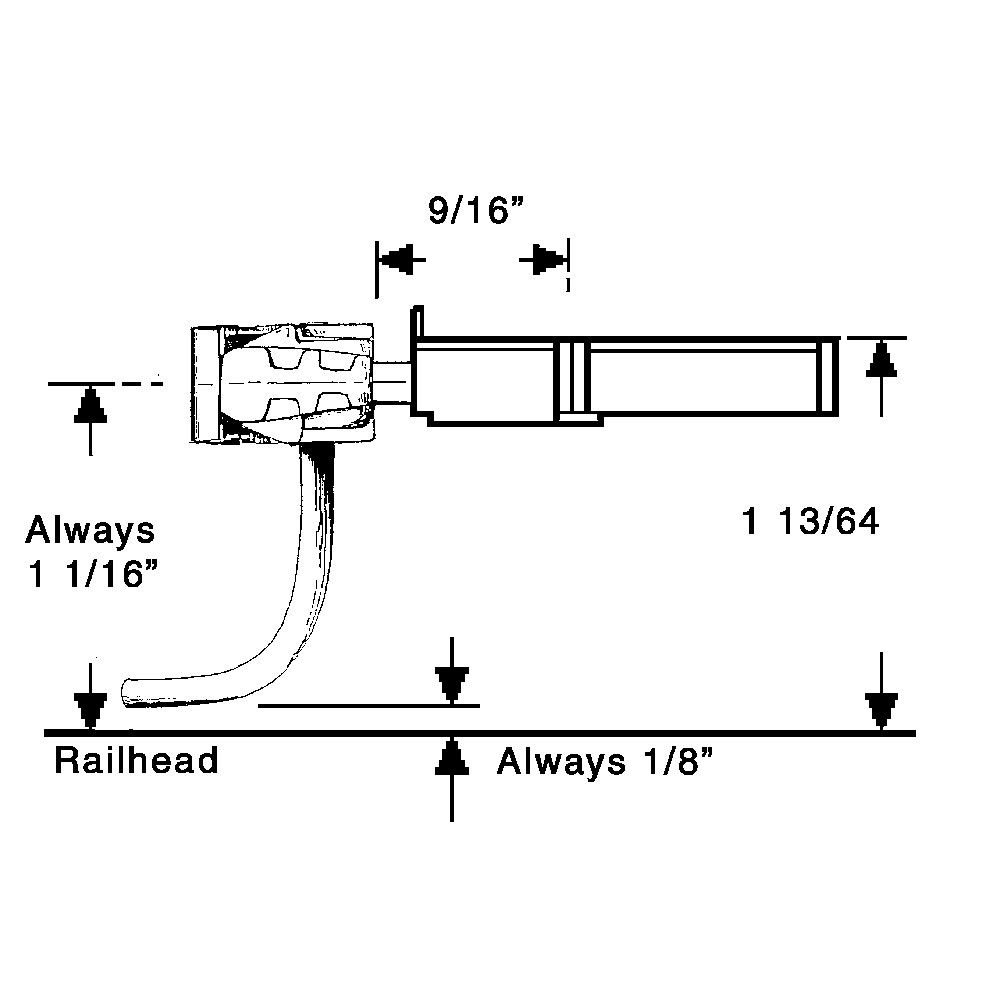

Mounting Specifications:
| Mounting Height | - 1 13/64" |
| Centerline | - 1 1/16" |
| Trip Pin Height | - 1/8" |
| Mounting Holes | - #4 Screws are the most commonly used. (Screw length will vary) |
