Atlas N Scale Code 55 13.75" Radius Curved Track – 6-Pack – ATL2016

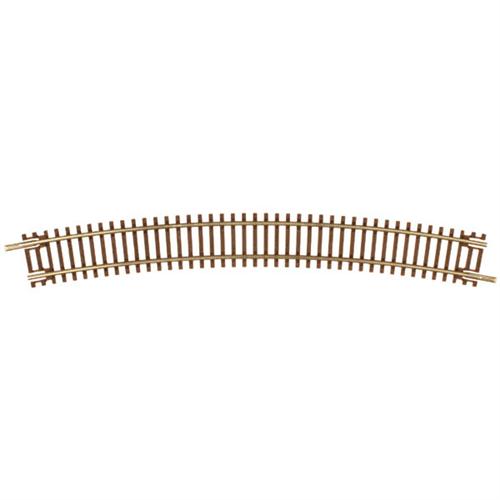

Atlas N Scale Code 55 13.75" Radius Curved Track – 6-Pack – ATL2016 includes six full-section curved track pieces for building smooth, consistent curves on N scale model railroads. Part of the Atlas N Scale Code 55 track system, each section features fine nickel silver rail with simulated brown wood ties for realistic, prototypical-looking trackwork.

Atlas specifies that 16 full sections create a complete 360° circle at the 13.75" radius. This means each ATL2016 curved track section provides 22.5° of curvature, while the six pieces included in this package provide a combined 135° of 13.75" radius curvature.

13.75" Radius Full-Section Curved Track

ATL2016 maintains a consistent 13.75" radius throughout each curved section. Its fixed sectional geometry makes it easy to create predictable curves for mainlines, branch lines, passing sidings and other portions of an N scale railroad.

Each package includes:

• 6 curved track sections
• 13.75" radius
• 22.5° of curvature per section
• 135° of total curvature per 6-pack
• 16 sections required for a complete 360° circle

Understanding 13.75" Radius Track Geometry

The 13.75" measurement describes the radius of the curve, while each individual full section covers 22.5° of a complete circle. Connecting additional sections increases the total angular coverage while maintaining the same 13.75" radius.

With 16 sections forming a complete circle, 4 sections create a 90° quarter-circle, 8 sections create a 180° half-circle and 16 sections create a complete 360° circle.

Broader N Scale Curve Geometry

The 13.75" radius provides a broader curve than the 10", 11.25" and 12.5" radius sectional curves in the Atlas Code 55 system. This gives modelers another option when balancing available layout space with smoother, more gradual track geometry.

These 13.75" radius sections can be useful for:

• Mainline curves
• Branch lines
• Passing sidings
• Yard approaches
• Station approaches
• Staging areas
• Industrial and switching layouts
• Sectional track plans requiring predictable curve geometry

Check Your Equipment's Minimum Radius

Minimum-radius requirements vary between N scale locomotives and rolling stock. Always check the recommended minimum radius for your equipment before designing a track plan around 13.75" radius curves, especially when operating longer locomotives, passenger cars or freight equipment.

Atlas N Scale Code 55 Track

Atlas N Scale Code 55 track features fine nickel silver rail and simulated brown wood ties for realistic N scale trackwork. The complete system includes curved track, straight track, flex track, turnouts and crossings, allowing modelers to combine sectional and flexible track components throughout a complete layout.

Atlas N Scale Code 55 13.75" Radius Curved Track Features

• N Scale
• Code 55 rail
• 13.75" radius
• Full-section curved track
• 6 pieces per package
• 22.5° of curvature per section
• 135° total curvature per package
• 16 sections form a complete 360° circle
• Fine nickel silver rail
• Simulated brown wood ties
• Predictable sectional curve geometry
• Part of the Atlas N Scale Code 55 track system
• Atlas manufacturer item number 2016
• Fusion Scale Hobbies SKU ATL2016
