Atlas HO Code 100 22" Radius Curved Track – 6-Pack – ATL836

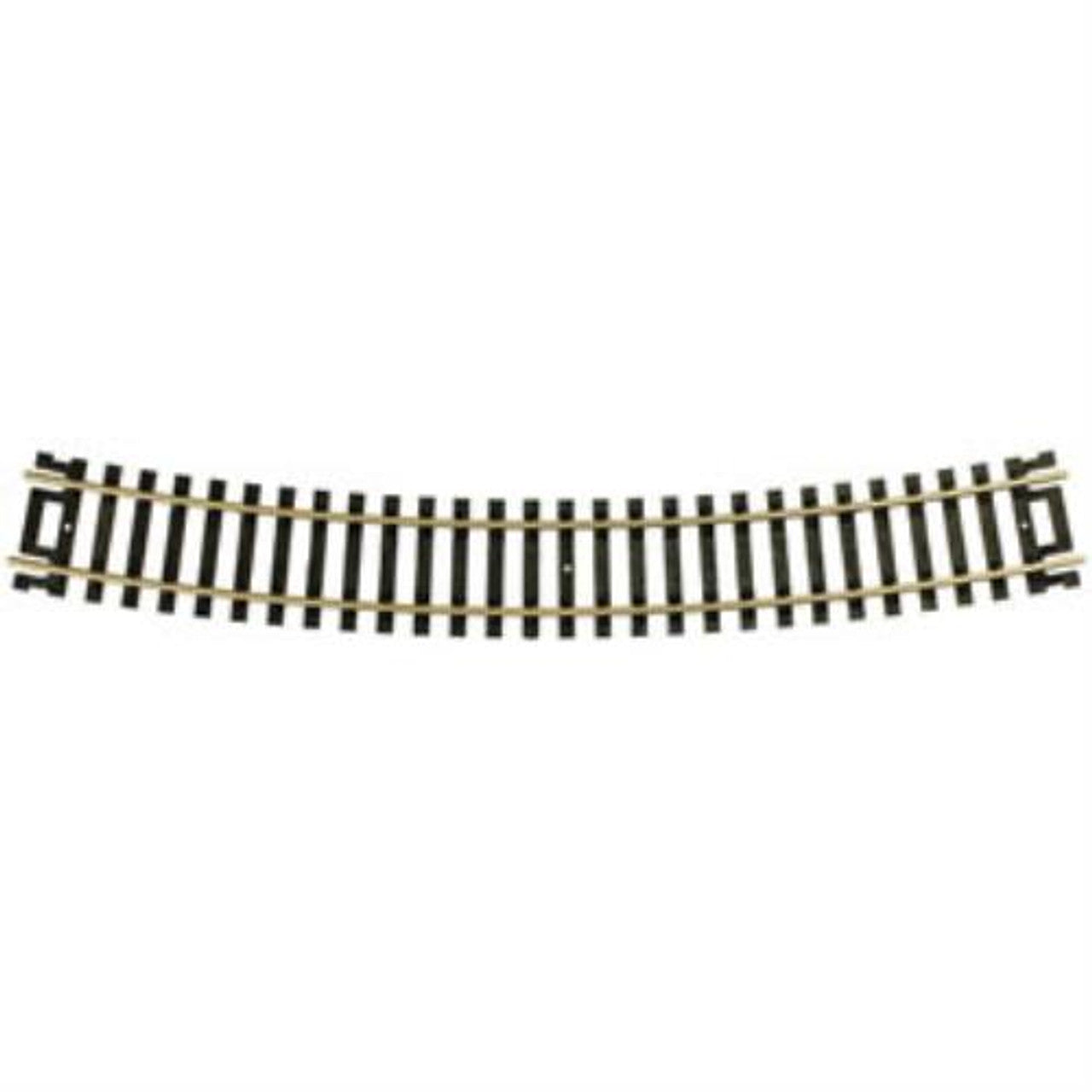

Atlas HO Code 100 22" Radius Curved Track – 6-Pack – ATL836 includes six fixed-radius curved sectional track pieces for building broader HO scale curves, loops and model railroad track plans. Each section follows a consistent 22-inch radius and features solid nickel silver Code 100 rail with black injection-molded plastic ties.

Each package contains six 22" radius curved track sections. Atlas specifies that 16 sections are required to form a complete circle. This means each individual section provides 22.5° of curvature, while one six-piece package provides 135° of total curvature.

22" Radius for Broader HO Scale Curves

The 22" radius provides a broader curve than Atlas 15" and 18" radius sectional track. Broader curves can improve the appearance of locomotives and rolling stock as they travel around a layout and can accommodate equipment that may not operate reliably on tighter-radius track.

These fixed-radius sections are useful for building consistent curves, loops and other sectional track arrangements without having to manually shape the track. Every piece follows the same 22" radius and fixed angular geometry, making it easy to reproduce smooth, predictable curves throughout a track plan.

Minimum-radius requirements vary between locomotives and rolling stock, so always check the manufacturer's recommendations for the equipment you intend to operate.

22" Radius Track Geometry

• 6 curved track sections per package
• 22" fixed radius
• 16 sections required for a complete circle
• Each section provides 22.5° of curvature
• One 6-pack provides 135° of total curvature
• 8 sections create a 180° semicircle

Because a complete 22" radius circle requires 16 sections, two six-packs alone are not enough to build a complete loop. If starting from zero, three packages provide enough track for a full 22" radius circle, with two curved sections remaining for future layout expansion.

Atlas HO Code 100 22" Radius Track Features

• HO Scale model railroad track
• 22" fixed curve radius
• 6 curved sections per package
• 16 sections form a complete circle
• 22.5° of curvature per track section
• 135° of total curvature per 6-pack
• Code 100 rail profile
• Solid nickel silver rail
• Black injection-molded plastic ties
• Fixed sectional track geometry
• Broader radius than Atlas 15" and 18" radius sectional track
• Useful for loops, curves and continuous-running HO layouts
• Designed to connect with compatible Atlas HO Code 100 track
• Atlas manufacturer item number 0836
• Fusion Scale Hobbies SKU ATL836

Build with Atlas HO Code 100 Curved Track

Browse our Atlas HO Code 100 Curved Track collection for additional curve radii and sectional track options. Choosing the appropriate radius allows you to balance available layout space with the operating requirements and appearance of your locomotives and rolling stock.

For the complete track system, shop our Atlas HO Code 100 Track collection.

Combine Curves with Straight Track & Turnouts

Pair these 22" radius sections with Atlas HO Code 100 Straight Track to construct ovals, continuous-running layouts and other sectional track plans.

Add Atlas HO Code 100 Turnouts & Switches to expand a basic mainline with passing sidings, yards, industrial tracks and branching routes.

Install Your HO Scale Track

For rail joiners, terminal connections, track nails, switch machines and other installation components, browse Atlas HO Track Accessories.

Atlas Code 100 sectional track can also be installed over Atlas HO Cork Roadbed to create a raised track profile and provide a foundation for ballast and finished scenery.
