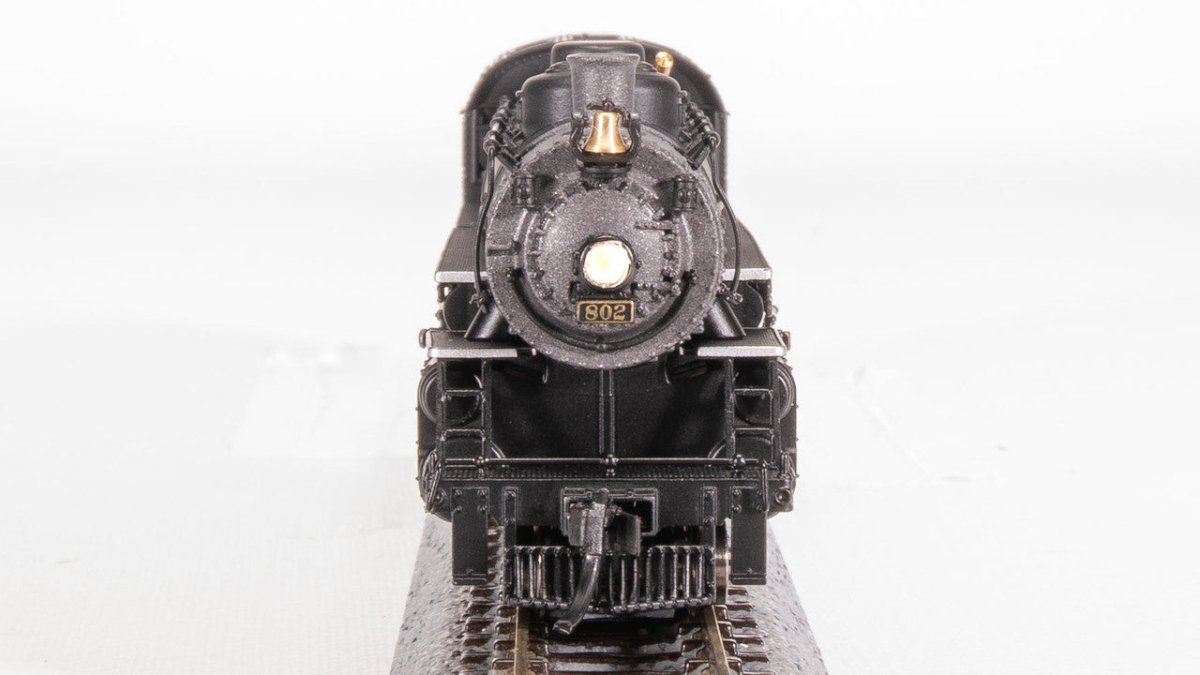

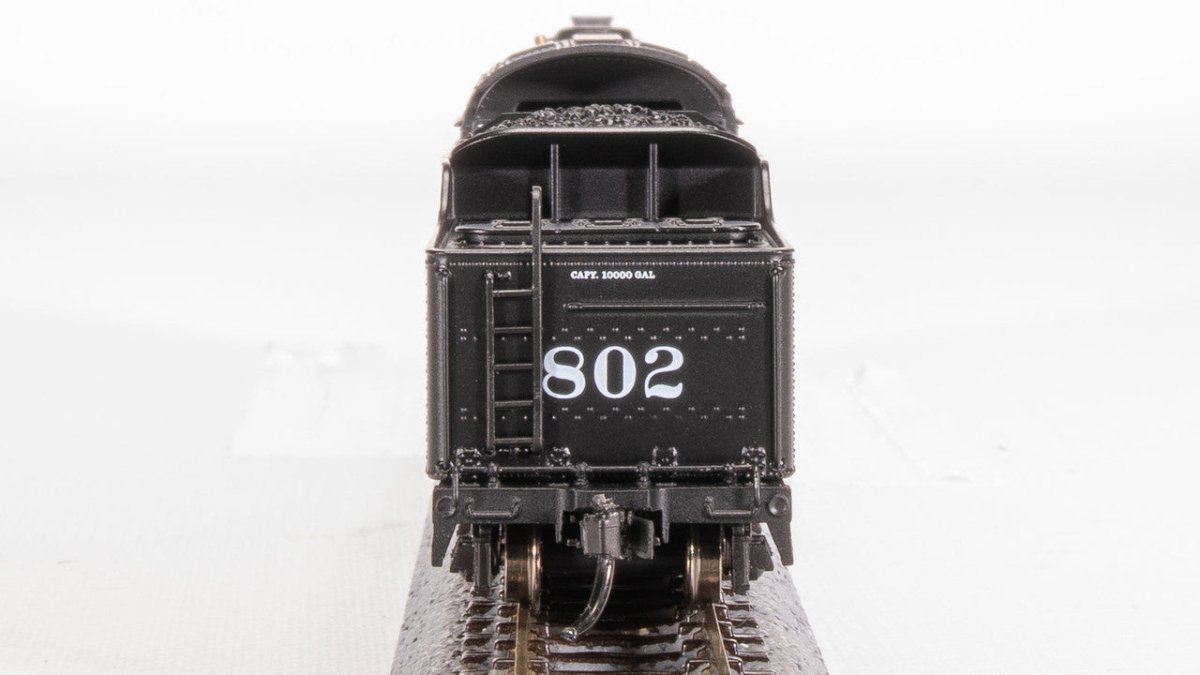

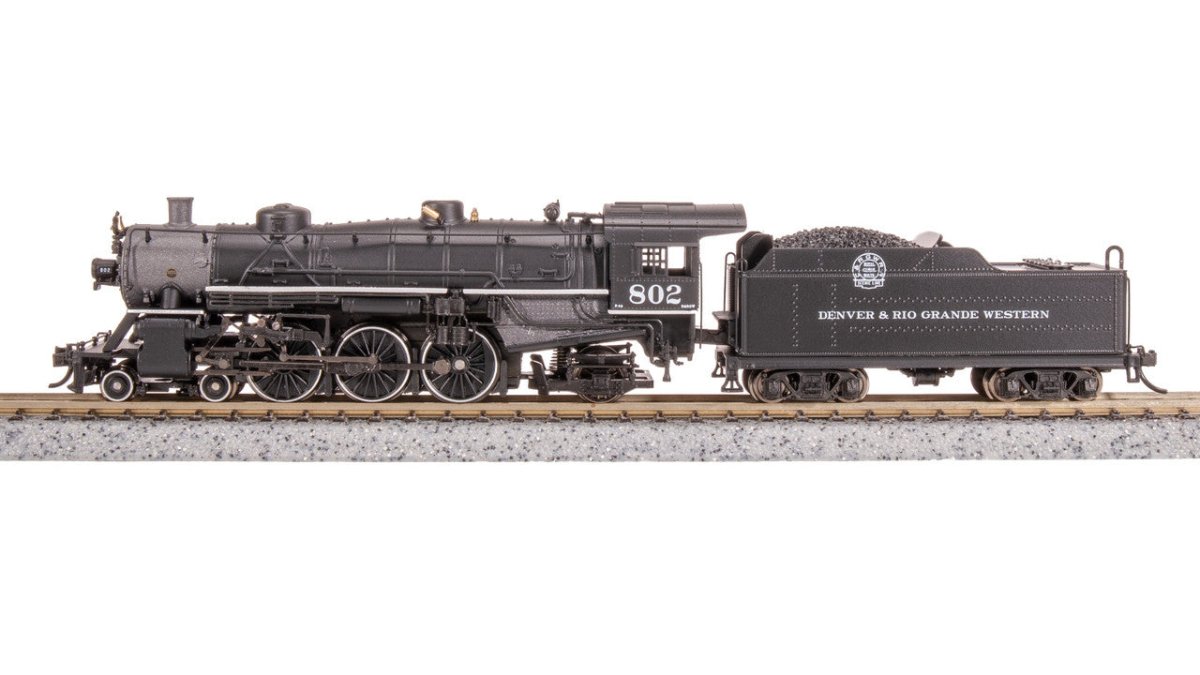

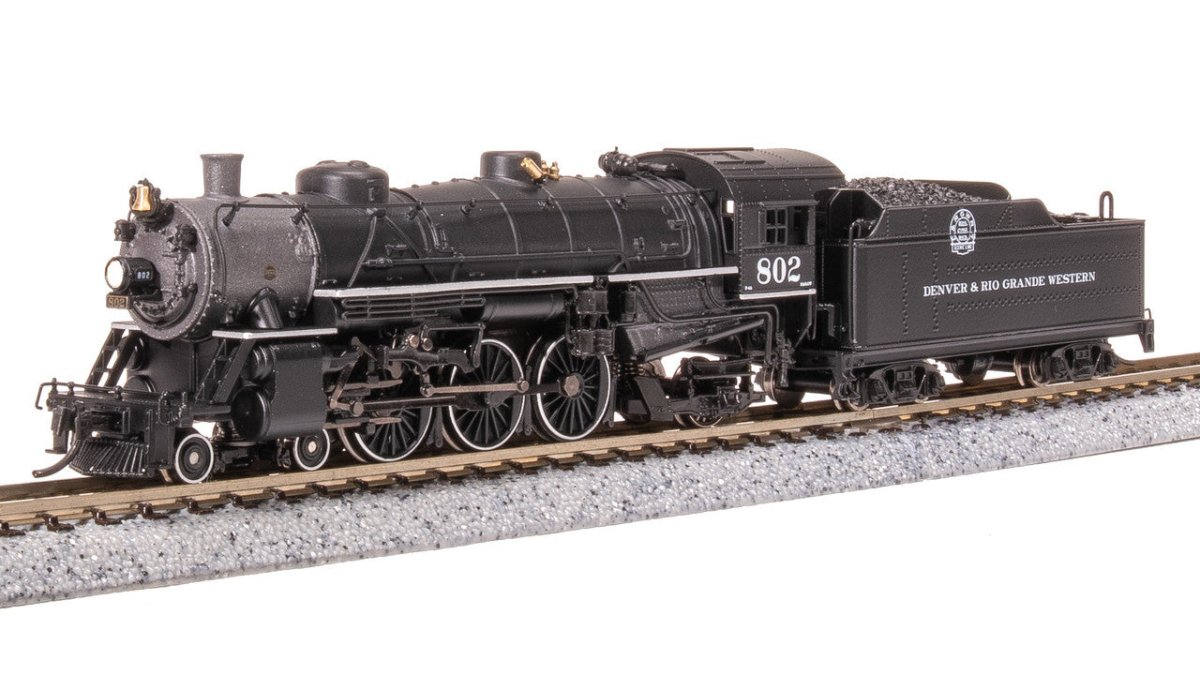

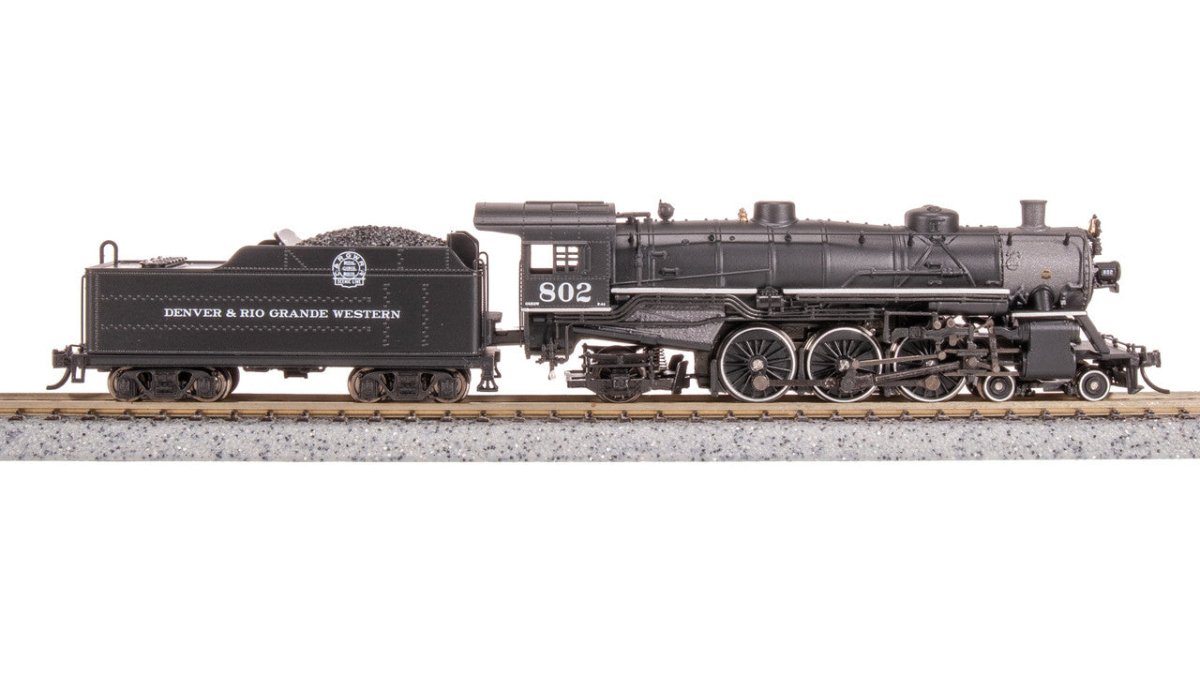

Broadway Limited N Scale DRGW Light Pacific 4-6-2 Steam #802 - 8003

In 2023, we are building our third production run of USRA Heavy and Light Pacifics. There were 20 original Heavy Pacifics built in 1919 for the USRA program, and all 20 went to Erie Railroad. From 1923, numerous copies were built, and many railroads operated similar locomotives. There were 81 original Light Pacifics built in 1919, and these were delivered to ACL, B&O, GTW, M&O (GM&O), and L&N. Subsequently, each of these railroads built copies, and several other railroads operated locomotives with similar dimensions and equipment. The Light Pacifics were limited to 54,000 lbs load per axle, versus 60,000 for the Heavy Pacifics, and this allowed the Light Pacifics to run on most main lines.
Our Heavy and Light models follow the original USRA designs closely. Railroad specific variations are not modeled on these locomotives. Many Pacifics used the same 10,000 gallon tender as the USRA Mikados, and our models uses this 10,000 gallon tender. In addition to some of the prototypical USRA Pacifics, we are also decorating our USRA prototype in attractive paint schemes that similar Pacifics wore for other railroads, as well as a few striking fantasy paint schemes. Our models are available in our Paragon4 Sound/DC/DCC Series, or in our Stealth Series as No-Sound / DCC-Ready models.
Industry-Leading Features:

Paragon4 Sound & Operation System featuring ROLLING THUNDERTM
Authentic Sounds and Prototypical Operation in both DC and DCC environments
Integral DCC Decoder with Back EMF for Industry Best Slow Speed Operation in DC and DCC
Precision Drive Mechanism engineered for continuous heavy load towing and smooth slow speed operation
Prototypical Light Operation with Golden White LED Headlight
Die Cast Boiler Body with Die Cast chassis for Maximum Tractive Effort
Traction Tires for Additional Tractive Effort
(2) Operating MicroTrains-compatible Couplers
Separately Applied Handrails, Ladders, Whistle, and Brass Bell
Will Operate on Code 55, 70, and 80 Rail
Recommended Minimum Radius: 9.75 inches

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI's own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited's Paragon3 Series models.
Paragon4 Sound & Control System Features:

Operates in DC & DCC with improved DC speed control (use DCMaster for DC Sound)
Built-In extra capacitance to navigate imperfect track
Pro Lighting Mode offers individual control of all lights on model
Switcher Mode for precise low speed control
Record & Play Operation - Records and plays back sounds and movements once or repeatedly for automatic operation
High Resolution Audio
Quillable Horn for various whistle lengths and patterns
Choice of 3 selectable Horns
Alternate Whistle / Horn where applicable for locomotive with air horn and steam whistle - both the main whistle and alternate can be easily played
Adjustable bell ringing interval for faster or slower bell
Numerous user-mappable functions with available keys
Multiple realistic passenger and crew sounds play on command
Grade Crossing Automatic Signal
Automatic Forward / Reverse Signal
Prime Mover sound intensity varies with load
Individually adjustable sound volumes for each effect
EZ Reset Button for quick return to factory default settings
**Specifications on this page subject to change.

Note: Pictures may be of another Road Number.
