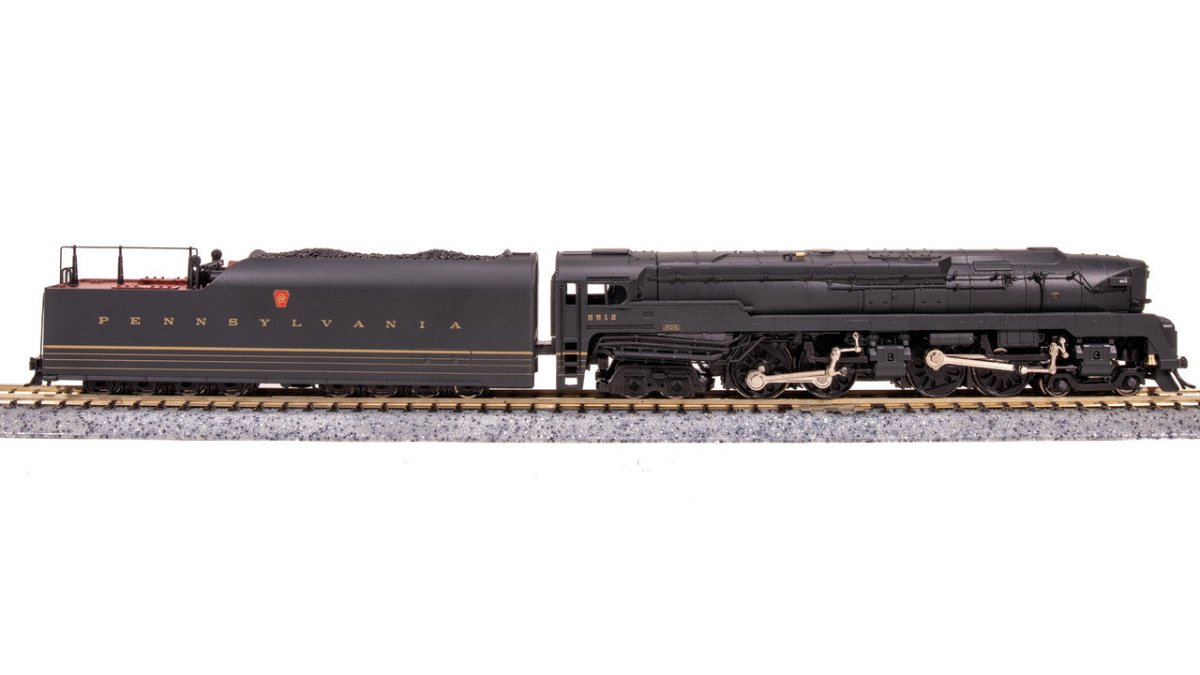

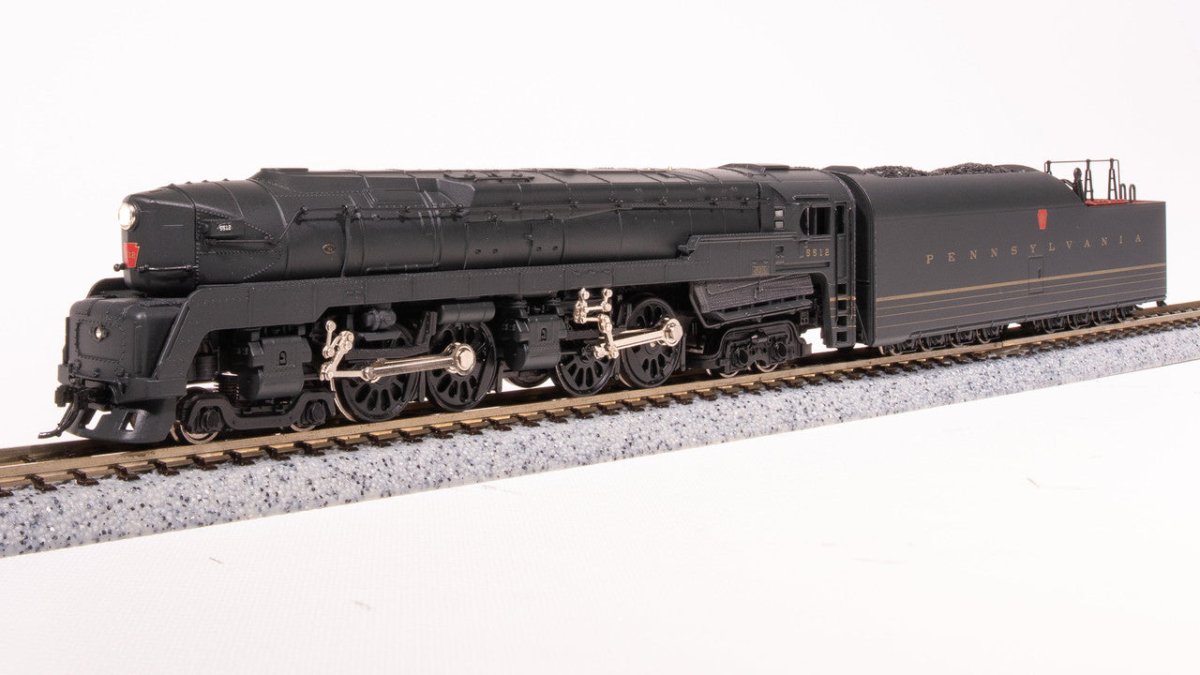

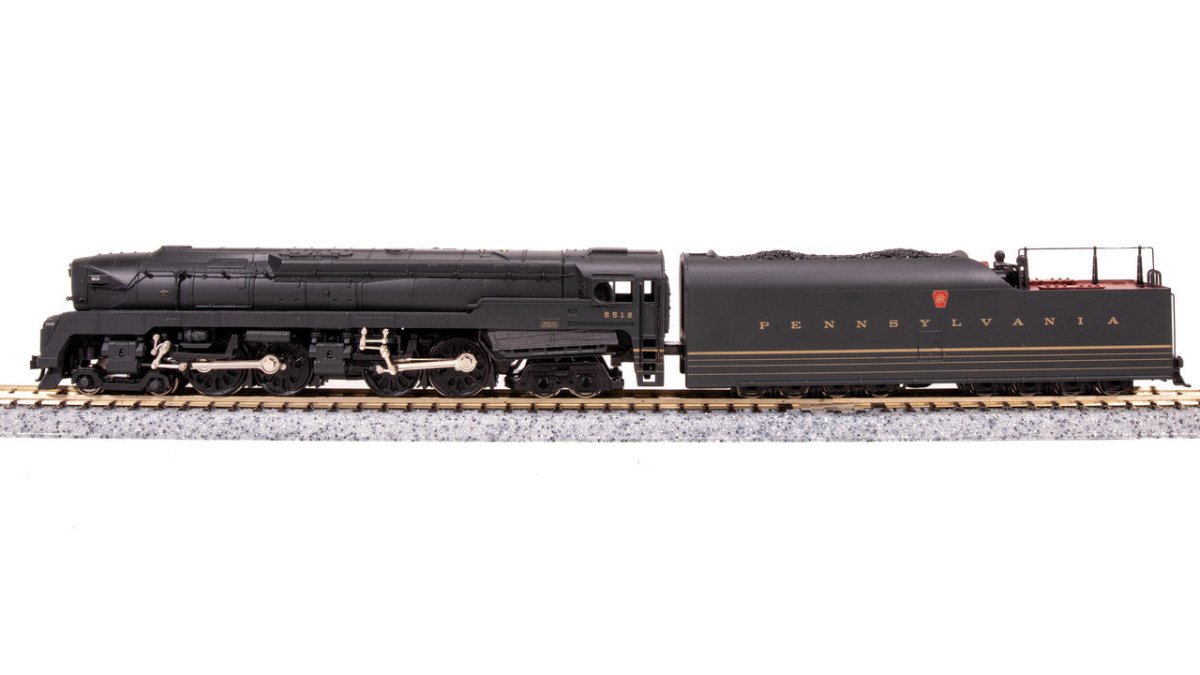

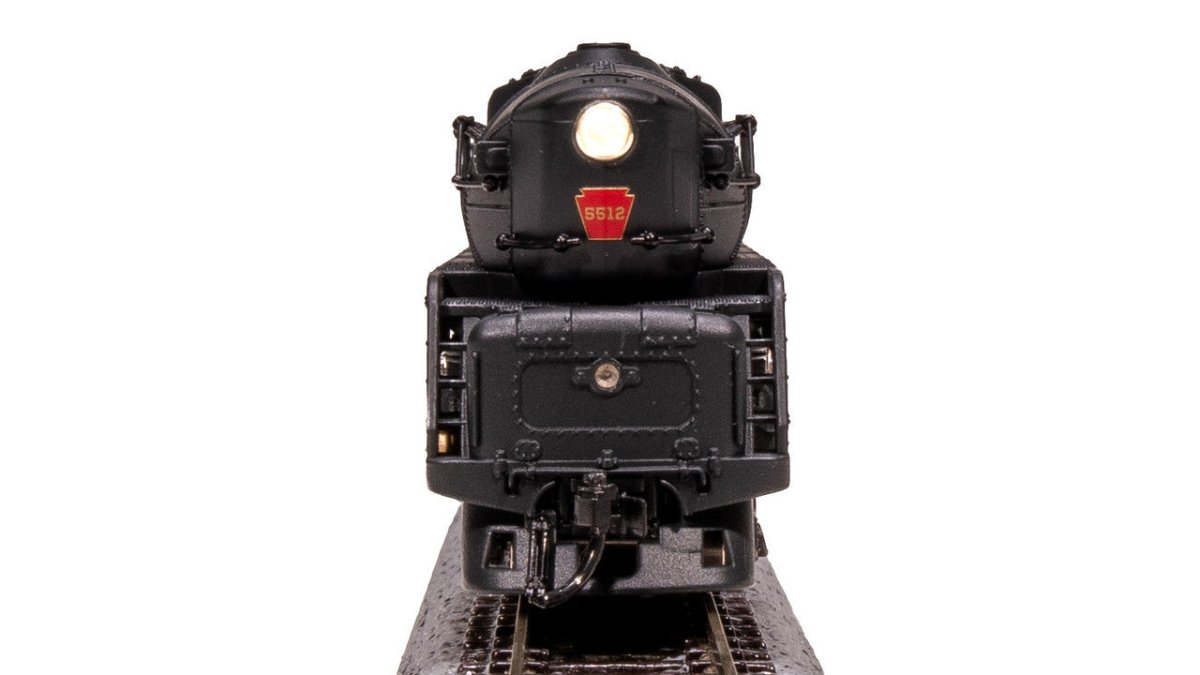

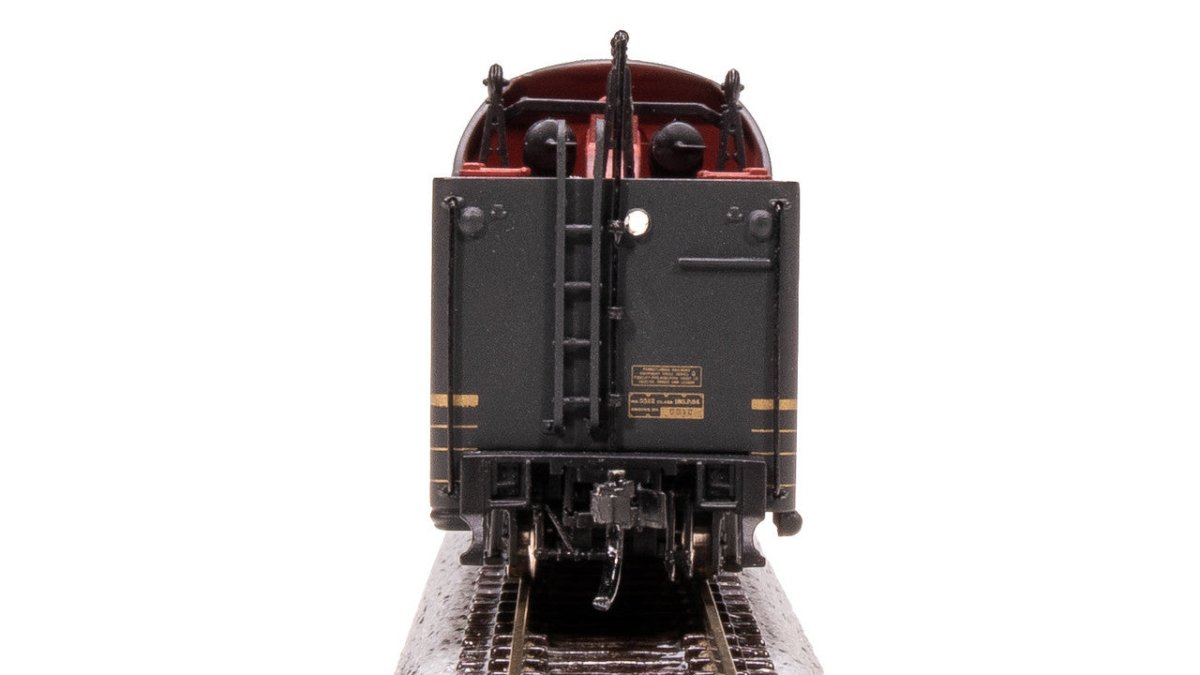

Broadway Limited N Scale Pennsylvania T1 Duplex Steam Locomotive #5500 - 8020

With the goal of developing more powerful motive power for express passenger service, the Pennsylvania Railroad introduced the class T1 Duplex 4-4-4-4 in 1942 with two prototype locomotives, and followed in 1945-1946 with 50 production models. Built with striking streamlining designed by Raymond Loewy, the T1 engines were large, powerful, and fast!
The T1's were duplex locomotives - this means they had two sets of drivers, each with its own pair of cylinders and rods. However, the T1s were not articulated locomotives, but used one rigid frame. With this design, the cylinders could be smaller and the weight of side rods and main rods could be reduced. This duplex design with lighter machinery, shorter cylinder stroke, less wear and tear due to small moving parts and the use of poppet valves allowed the T1's to travel at extremely fast speeds. Unfortunately they were also prone to wheelslip and maintenance issues that the Pennsy struggled to work through - especially the fact that the poppet valves could not withstand sustained operation at 100 mph speeds. These problems likely could have been resolved with some modest design changes, but the PRR, and steam in general, ran out of time. In 1948, the PRR dieselized all of its first-class prime trains and the T1s were downgraded to haul secondary trains. Some were withdrawn from service in 1949, and all were retired by 1952.
In 2023, Broadway Limited is building our third production of Pennsy T1 Duplex models, and our first production with our Paragon4 Sound/DC/DCC system. We are building five models in traditional DGLE paint and Pennsy lettering, one Unlettered model that will be painted DGLE, and three models decorated in fantasy paint schemes based on well-known PRR paint schemes. All models will have prototypically accurate sounds for a Pennsylvania Railroad T1 Duplex 4-4-4-4.
Industry-leading Model Features:ALL-NEW Paragon4 Sound & Control System featuring Rolling Thunder
Integral Dual-Mode Decoder with Back EMF for Superb Slow Speed Operation in DC and DCC
Precision Drive Mechanism engineered for continuous heavy load towing and smooth slow speed operation
Extra Built-in Capacitance for more Consistent Elecrical Pick-up
Die Cast Locomotive Body with Die Cast Chassis for Heavier Weight and Maximum Tractive Effort
Rubber Tires on One Driver for Additional Tractive Effort
Premium Caliber Painting with Prototypically Accurate Paint Schemes and Road Numbers
Prototypical Light Operation with Separately Controllable Headlight and Rear Light
Many Separately Applied Details such as Handrails, Grab Irons, Ladders, Piping, Whistle, and Bell
Operating Microtrains-compatible Couplers
Will Operate on Code 55, Code 70, and Code 80 Rail
Minimum Operating Radius: 9.75 inches
Accurate Prototypical Sounds for the PRR T1 Duplex
Note: Pictures may be of another Road Number.
