Lionel LCS CSM2 DZ-2500 Breakout Board O Gauge Layout Control System - LNL1908010
Lionel LCS CSM2 DZ-2500 Breakout Board O Gauge Layout Control System - LNL1908010
$29.95
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

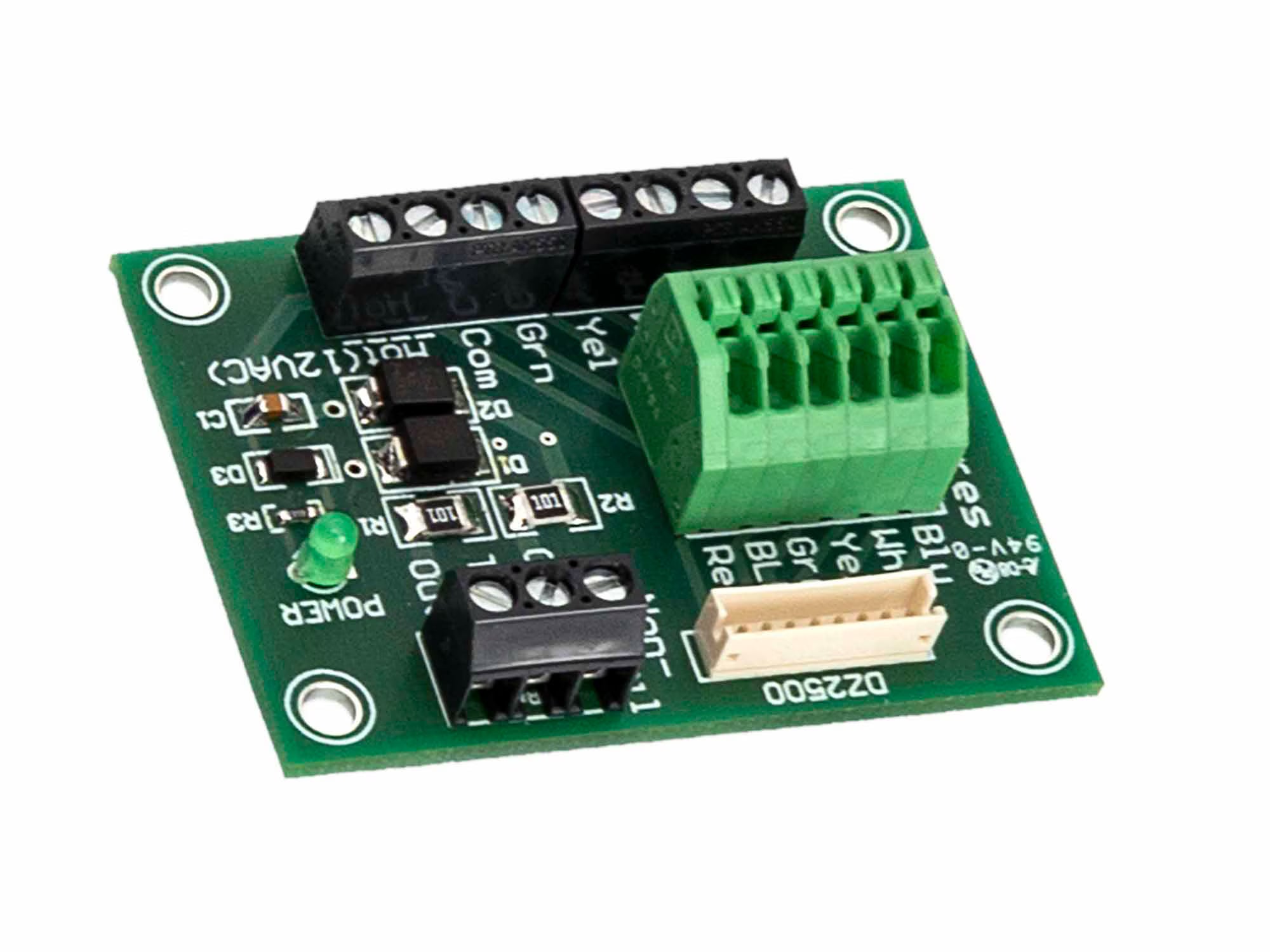

Upgrade your Lionel model railroad's control and switch wiring with the Lionel LCS CSM2 DZ-2500 Breakout Board - LNL1908010. Purpose-built for use with the Z-Stuff DZ-2500 switch machine, this Lionel Layout Control System accessory provides a cleaner, faster and more reliable way to wire DZ-2500 switch machines into an operating O Gauge layout.
Designed for model railroaders who want to simplify turnout installation and troubleshooting, the LCS CSM2 breakout board allows serial data to be daisy-chained between DZ-2500 switch machines without requiring a DZ-2001 Data Wire Driver. Each DZ-2500 switch machine requires one breakout board.
Designed for Z-Stuff DZ-2500 Switch Machines
The Lionel LCS CSM2 DZ-2500 Breakout Board is specifically designed for use with the Z-Stuff DZ-2500 switch machine. Its purpose-built design helps streamline switch-machine wiring while providing dedicated connections for a more organized model railroad installation.
- Purpose-built for the DZ-2500: Designed specifically for use with the Z-Stuff DZ-2500 switch machine.
- Simplified wiring: Makes wiring DZ-2500 switch machines easier and faster.
- Daisy-chain serial data: Serial data can be daisy-chained between DZ-2500 switch machines.
- No DZ-2001 Data Wire Driver required: Simplifies the installation while reducing additional components.
- Easier troubleshooting: The breakout-board configuration helps simplify troubleshooting when diagnosing failed switch machines.
- Power-surge protection: Integrated circuitry helps protect the DZ-2500 from power surges caused by derailments.
- Dedicated non-derail connector: Includes a dedicated connection for non-derail wires.
- One board per switch machine: One LCS CSM2 breakout board is required for each DZ-2500 switch machine.
Lionel Layout Control System Accessory
For operators building a more advanced Lionel railroad, reliable turnout control and organized wiring can make a major difference in layout operation and maintenance. The CSM2 breakout board provides an efficient interface for DZ-2500 installations while adding valuable protection against electrical surges that may occur during derailments.
This makes the Lionel 1908010 LCS CSM2 DZ-2500 Breakout Board a practical addition for operators using DZ-2500 switch machines on Lionel O Gauge layouts, especially larger railroads incorporating multiple switches and more sophisticated control systems.
Product Specifications
- Manufacturer: Lionel Trains
- Product: LCS CSM2 DZ-2500 Breakout Board
- Lionel Product Number: 1908010
- Fusion Scale Hobbies SKU: LNL1908010
- Gauge: O Gauge
- Scale Type: Scale
- Power: Electric
- Compatibility: Z-Stuff DZ-2500 Switch Machine
- Quantity Required: One breakout board per DZ-2500 switch machine
