NCE Power Cab DCC Starter Set 2 Amp – NCE 5240025

NCE Power Cab DCC Starter Set – NCE 5240025

The NCE Power Cab DCC Starter Set is a complete, easy-to-use Digital Command Control system for model railroaders looking to get started with DCC or power a small to medium-sized layout. The NCE Power Cab 5240025 combines the command station, booster, and handheld cab into a compact DCC system capable of controlling DCC-equipped locomotives while providing access to programming, consisting, accessory control, and other advanced DCC functions.

Designed for HO scale, N scale, Z scale, S scale, and On3 model railroads, the NCE Power Cab provides 2 amps of DCC power at approximately 13.8 volts. NCE estimates this is sufficient for approximately four typical HO scale locomotives or eight typical N scale locomotives operating at the same time, depending on the actual current requirements of the locomotives and installed DCC decoders.

Complete NCE DCC Starter System

The NCE Power Cab is designed to make the transition from conventional DC train control to Digital Command Control straightforward. The handheld Power Cab provides direct access to locomotive speed, direction, functions, decoder programming, consisting, and system settings from a familiar handheld throttle.

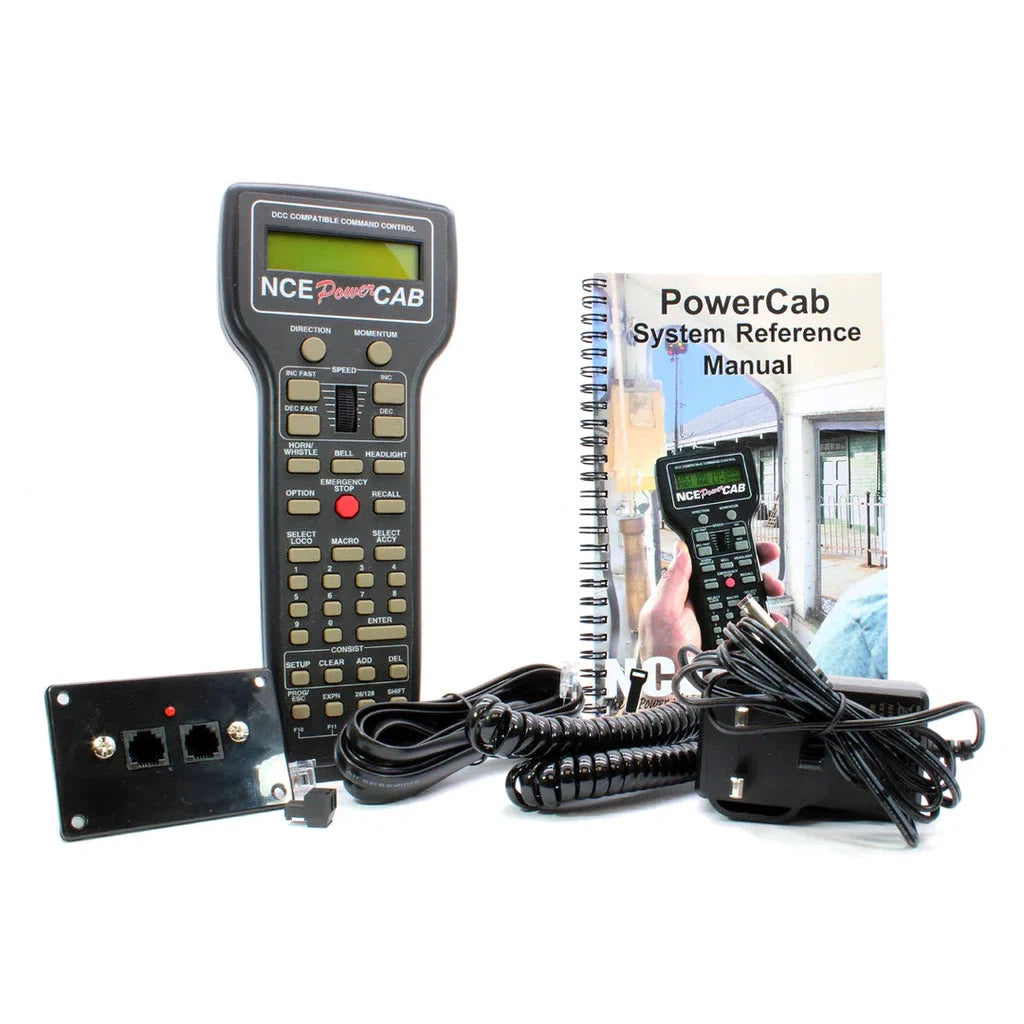

Because the command station and booster are incorporated into the Power Cab system, you do not need to purchase a separate command station to begin operating a DCC model railroad. Connect the supplied Power Cab Panel to your track, connect the NCE power supply and Power Cab using the supplied flat cable, and the system is ready to control compatible DCC-equipped locomotives.

NCE Power Cab 5240025 Features

• Complete DCC starter set for operating DCC-equipped model trains
• 2 amp DCC system with approximately 13.8V track output
• Suitable for HO, N, Z, S, and On3 scale model railroads
• Handheld Power Cab combines throttle and core DCC system controls
• Control locomotive speed, direction, and DCC functions
• Program compatible DCC locomotive decoders
• Create and operate locomotive consists
• Designed for quick installation and easy operation
• Expandable as your DCC model railroad grows
• Supports additional compatible NCE cabs for additional operators
• Can be expanded with the NCE SB5 Smart Booster when additional power and system capability are required
• Ideal for home layouts, switching layouts, shelf layouts, and model railroaders getting started with DCC

How Many Trains Can the NCE Power Cab Run?

The Power Cab provides up to 2 amps of DCC power. NCE uses a general estimate of approximately 0.5 amp for a typical HO scale locomotive and approximately 0.25 amp for a typical N scale locomotive. Using those estimates, an NCE Power Cab can operate approximately four HO scale locomotives or eight N scale locomotives simultaneously.

Actual capacity varies depending on the locomotives, motors, lighting, sound decoders, accessories, and other electrical loads connected to the DCC system. Locomotives sitting idle generally require significantly less power than locomotives actively operating.

A Great First DCC System for HO and N Scale

For model railroaders moving from DC to DCC, the NCE Power Cab Starter Set provides an excellent foundation without requiring a large collection of separate components. Its handheld design puts locomotive operation and decoder controls directly in your hand while providing enough power for many typical home HO and N scale layouts.

The system is also expandable. Additional compatible NCE cabs can be added for more operators or operating locations. If a growing railroad eventually requires additional track power, the Power Cab can form the basis of a larger NCE DCC installation using compatible NCE expansion products such as the SB5 Smart Booster.

NCE Power Cab Applications

The NCE Power Cab is an excellent choice for HO scale DCC layouts, N scale DCC layouts, switching layouts, shelf layouts, modular layouts, test tracks, locomotive programming tracks, and smaller home model railroads. Its combination of straightforward operation and expandability has made the Power Cab a popular starting point for model railroad Digital Command Control.

Product Information

• Manufacturer: NCE Corporation
• Product: Power Cab DCC Starter Set
• NCE Part Number: 5240025
• Alternate NCE Part Numbers: 524-0025 / 524-25
• System Type: Digital Command Control (DCC)
• Power Capacity: 2 Amps
• Track Voltage: Approximately 13.8V DCC
• Power Supply: 24-watt 110-240V US power supply
• Recommended Scales: Z, N, HO, S, and On3

Why Choose the NCE Power Cab?

The NCE Power Cab DCC Starter Set 5240025 offers the features needed to start operating a Digital Command Control model railroad in one convenient system while retaining an upgrade path for future expansion. Whether you're installing DCC on your first HO or N scale layout, replacing a basic train-set controller, or building a dedicated DCC programming and test setup, the Power Cab provides a proven NCE solution for controlling DCC-equipped model trains.
