Train Control Systems LT-50 DCC Starter System
Train Control Systems LT-50 DCC Starter System
$169.95
$159.95
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

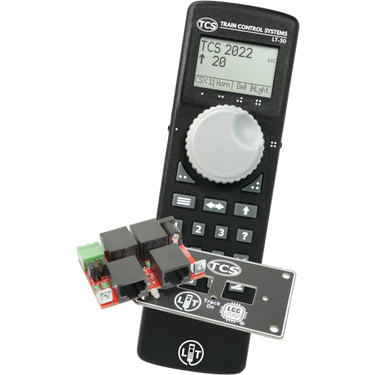

The LT-50 "Layout Throttle" is an intelligently-designed wired LCC throttle with a built-in command station. Ergonomically designed to comfortably fit your hand and provide easy access to all of the buttons, the LT-50 is the perfect DCC command station for newcomers, or layout operators and builders looking for a highly-capable, portable command station and throttle. Like the CS-105, the LT-50 is overflowing with features, including RailCom® - but there's so much more it can do!
The LT-50 Layout Throttle from TCS is the new standard in utility for model railroads. This system brings a new level of operational convenience, as well as a wide range of new features compared to the competition. Instead of spending time with your head in a manual trying to understand your throttle, the intuitive interface of the LT-50 allows you to focus on the important things - operating and enjoying your trains! We are confident that the LT-50 will quickly become your favorite throttle to use.
The LT-50 features an encoder-style knob for easy menu navigation as well as speed control. Package includes a spare knob.
Also included in the package is a 15V power supply, a single LT-50 fascia panel and fascia cover plate, screws for mounting the fascia board and plate, detachable track power connector, and a single RJ-45 cable.
Large, Full-text Screen
1.42" x 0.92" LCD screen with white backlight. Brightness is entirely adjustable for a variety of operating conditions.
Programmable Buttons
The encoder button, two buttons on the face of the throttle, as well as two multi-position switches on the side (9 total) can be reassigned to control many functions. Examples include dynamic braking, manual notching, and more! Higher-numbered functions are now a simple button press or switch flick away!
Multiple Connection Modes
The LT-50 can be used as a standalone command station, but if connected into an LCC network, the LT-50 will act as a normal LCC throttle. For operators who prefer a wired throttle, the LT-50 can connect to a CS-105 to offer that wired throttle experience.
Integrated Consisting System
Consisting doesn’t have to be difficult, intimidating, or complicated! The LT-50 features a simple consisting interface where users can make, modify, and break up consists in mere seconds.
Yard Mode
Yard Mode is an innovative, TCS exclusive feature designed for switching operations and control. Perfect for spicing up repetitive yard moves!
Full-Text Menus
Menus present all options in full words and phrases. No guess work or manuals needed!
Help Text
Use the [?] button on the keypad in any menu to access help text for that menu item. The throttle will display a simple description of the highlighted option. Help is always one button press away!
Flashlight
The LT-50 unit comes equipped with two bright white LED's that can be activated at any time - handy for those dropped screws, lost detail parts, decoupling, and ventures under dark, cavernous benchwork.
Dimensions
6.57" x 1.96" x 0.97" (L x W x H)
Display
1.42" x 0.92" backlit LCD, 128x64 pixels, white LED
Communication Type(s)
LCC CAN-bus (RJ-45)
Communication Protocol(s)
Digital Command Control (DCC)
Layout Command Control (LCC)
RailCom®
Interface
Encoder Knob
Tactile Keypad
Integrated On-Screen Menu
Tethered (LCC)
Programmable Buttons
9
Power Source
Wired; 15V, 36W (Included)
Supported Languages
English (US)
Quick Start Guide
Download LT-50 Quick Start Guide Rev3 B&W.pdf (1.05 MB)
Wiki
Firmware Page
