This product is an expansion panel for an LCC network, such as those created and used by the CS-105 and LT-50. Use this product to expand the number of wired throttles such as the T-50 you can connect to the TCS command station, or to provide an access point for other LCC devices distributed around your layout.

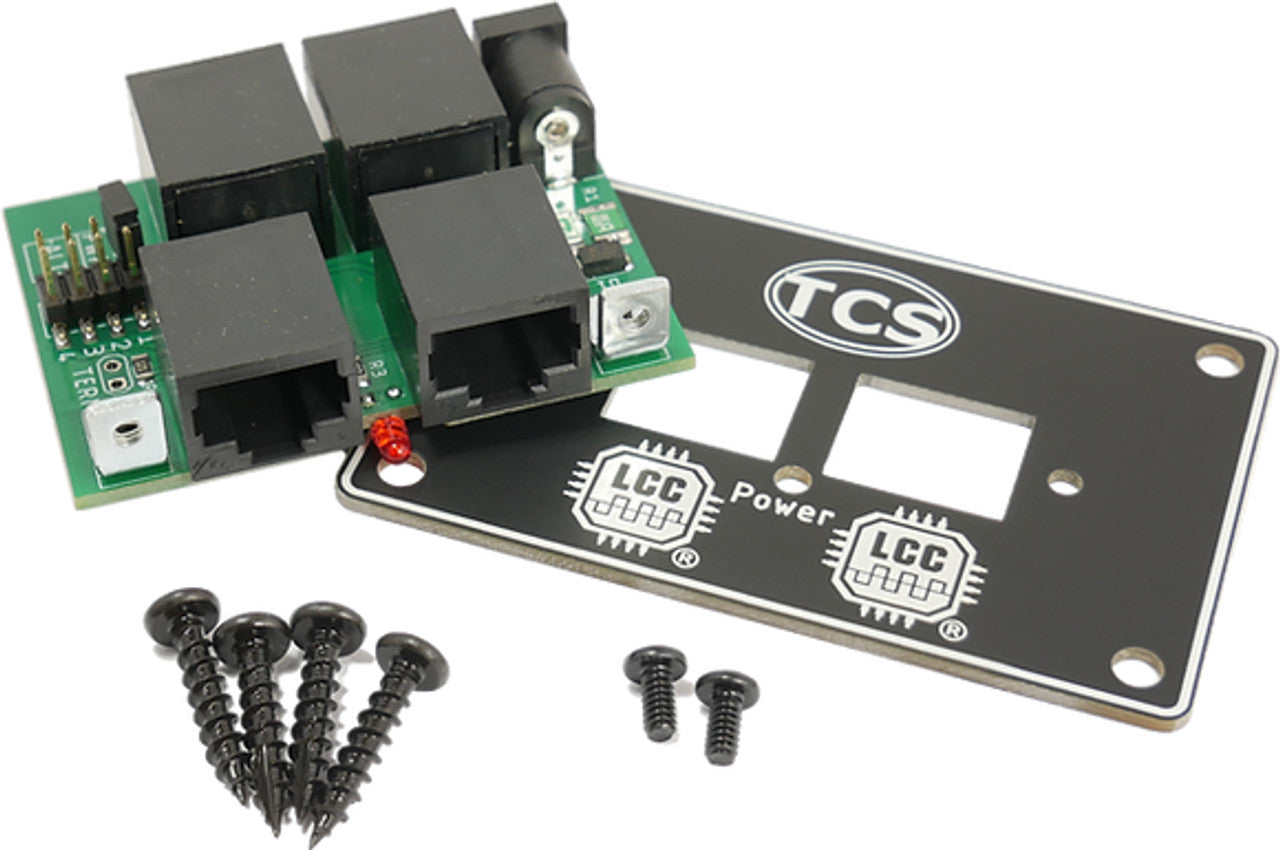

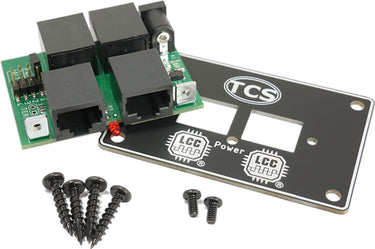

Package includes:
- LCC fascia board x1
- LCC fascia cover plate x1
- Fascia mounting screws x4
- Fascia cover plate screws x2
Specs:
- Front facing LCC Power Injection Mode - 400mA combined
- Rear facing LCC Power Injection Mode - 400mA each
- LCC Power Consumption (self) = 10mA
- Power Supply Barrel Jack - 2.5mm ID x 5.5mm OD, center positive, outside negative.
Product Literature
Download LCC Throttle Panel.pdf (415 Kb)
Wiki Documentation
LCC Panel Installation Instructions
- Cut a square hole in your fascia with a width of ~2.75 inches and a height of ~0.75 inches.
(Min Width = 2.5in; Max width =2.9in; Max Height =1.8in) - Align the small hole on the fascia cover plate to the indicator LED before screwing it on using the included screws. You can flip the fascia cover plate over for upside-down installation. The cover plate has been desinged so that it cannot be installed incorrectly. The "LCC" logos should always be readable regardless of the orientation.
- Use the four included self-tapping wood screws to secure the assembled LCC Throttle Panel into your fascia.
- Plug in the LCC Panel Power Supply (Optional; Not Included)
- Connect your LCC network cables into the two jacks in the rear, or one jack and a LCC Terminator.
Note: An LT-50 plugged into either of the front-facing LCC sockets will function as a throttle only.
